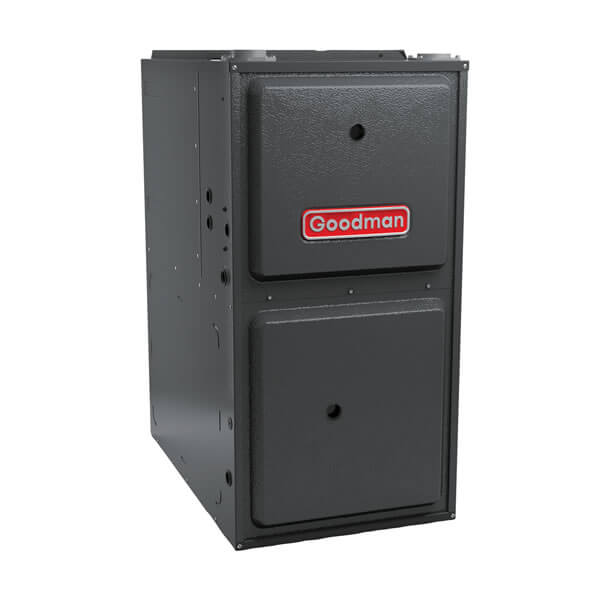

Goodman GMVC96 Furnace

Model: GMVC96

Get Quote With Installation

Energy Star

Categories: ,

Description

Goodman LogoHeating Input: 40,000–120,000 BTU/h
Two-Stage, Variable-Speed ECM Gas FurnaceUp to 96% AFUE
Standard Features
  • Integrated communicating ComfortBridge™ Technology
  • Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Two-stage gas valve provides quiet, economical heating
  • Durable Silicon Nitride igniter
  • Quiet two-speed induced draft blower
  • Compatible with any single-stage thermostat
  • Self-diagnostic control board with constant memory fault code history output to a triple 7-segment display
  • Color-coded low-voltage terminals with provisions for electronic air cleaner
  • Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
  • Multiple continuous fan speed options offer quiet air circulation• Auto-Comfort and enhanced dehumidification modes available
  • All models comply with California 40 ng/J Low NOx emissions standard

Cabinet Features

  • Designed for multi-position installation — upflow, horizontal left or right
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy to install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) ≤ 2%
  • Heavy-gauge steel cabinet with durable baked-enamel finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom air-inlet applications
