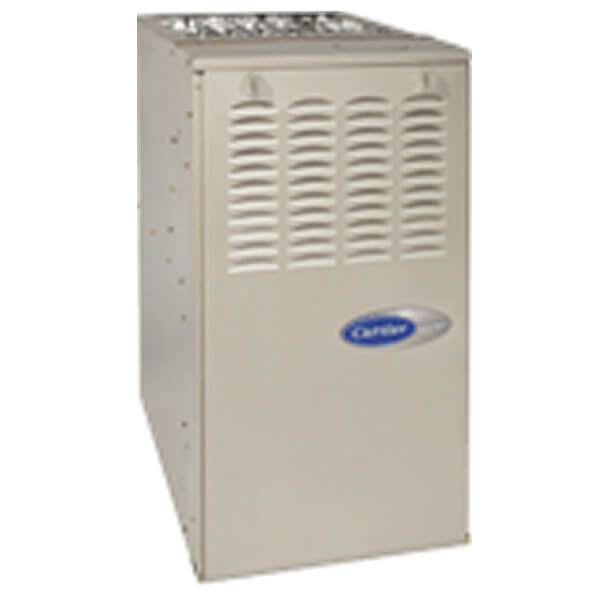

Carrier – Infinity® 80 Gas Furnace 58TN

Model: 58TN
Efficiency Up to 80% AFUE
Quiet Level Best
Comfort Features Best
Get Quote With Installation

Energy Star

Description

Southern climates with short, mild winters may not call for the highest degree of efficiency. As part of an Infinity communicating system, you can pair this model with a high-efficiency heat pump or air conditioner. It’s the outstanding choice for potentially boosting cooling system efficiency and improving summer dehumidification.

STANDARD FEATURES

  • 80.0% AFUE heating efficiency
  • Two-stages of heat for economical operation
  • Variable-speed, constant airflow ECM blower motor for ultimate comfort and ultra-quiet operation and exceptional electrical motor efficiency
  • Ideal Humidity System® technology capable to aid heat pump or air conditioner summer dehumification
  • SmartEvap technology works in concert with your cooling system to aid summer dehumidification
  • ComfortFan technology allows fan-speed choices in “Constant ON” mode
  • Infinity intelligence enables self-configuration and easy troubleshooting with Infinity control
  • Fully insulated cabinet
  • Advanced temperature control
  • Low NOx models available (58TN1)
  • 10-year parts limited warranty upon timely registration1
  • Lifetime heat exchanger limited warranty upon timely registration2

Efficiency

  • 80.0% AFUE

Performance

  • Low stage operation up to 90% of time for quiet, energy-efficient operation
  • Allows 4 choices of “constant ON” fan speed operation
  • Hybrid Heat® compatible
  • Exceptional year-round humidity management when installed as part of complete Infinity system with added humidifier
  • Variable-speed blower makes it the best choice for boosting SEER efficiency when matched with appropriate cooling system components

Technology

  • Two-stage gas valve
  • Variable-speed, ECM blower motor
  • Pilot-free, hot surface PowerHeat ignition
  • Two-speed inducer motor
  • Aluminized steel clamshell-style primary heat exchanger
  • Sound reduction: fully insulated cabinet and QuieTech noise reduction
  • Infinity level advanced diagnostic intelligence
  • Recommended control: Infinity control

Capacities

  • 45,000- 135,000 Btu/h

Installation

  • Flexible installation: upflow, downflow or horizontal
  • Versatile venting for tight-fit applications

Requirements

  • 115 V
  • .5″ gas connection
  • Convertible to Liquid Propane (LP)

Aesthetics

  • 20-gauge, galvanized steel with appliance finish
  • Baked on urethane base coat and polyester top coat paint in taupe metallic
  • Dimensions in upflow position: 33.25″H x width varies by size: 14.25-24.5″ x 29″D
