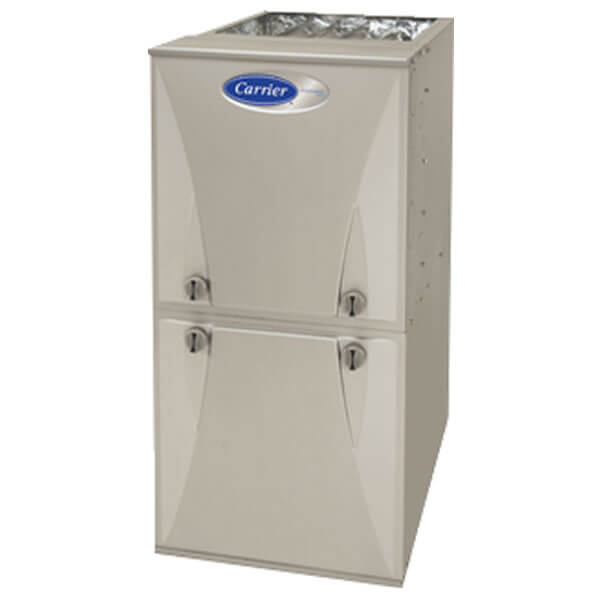

Carrier – Performance™ 96 Gas Furnace 59TP6

Model: 59TP6
Efficiency Up to 96.5% AFUE
Quiet Level Better
Comfort Features Better
Get Quote With Installation

Energy Star

Description

Supported by the Performance Edge® thermostat and a variable-speed blower motor, this two stage furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.

Variable-speed blower operation also aids other system components and can help make your air conditioning system more efficient and improve summer dehumidification.

Additionally, SmartEvap technology gives cooling condensation time to drain away to prevent rehumidification. SmartEvap can reduce humidity by up to 10%.

Standard Features

  • Up to 96.5% AFUE heating efficiency
  • Two-stages of heat for economical operation
  • Variable-speed, constant torque ECM blower motor for comfort and quiet operation
  • Ideal Humidity System® technology capable to aid heat pump or air conditioner summer dehumidification
  • SmartEvap technology works in concert with your cooling system to aid summer dehumidification
  • ComfortFan technology allows fan-speed choices in “Constant ON” mode5
  • Comfort Heat Technology ® feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
  • Fully insulated cabinet
  • 10-year parts limited warranty upon timely registration1
  • Lifetime heat exchanger limited warranty upon timely registration2

Efficiency

  • Up to 96.5% AFUE
  • All sizes meet ENERGY STAR® qualifications

Peformance

  • Low stage operation up to 90% of time for quiet, energy-efficient operation
  • Allows choices of “constant ON” fan speed operation1
  • Hybrid Heat® compatible
  • Year-round humidity management when installed as part of complete Performance system with humidifier
  • With variable-speed airflow, it’s the ideal choice for boosting SEER efficiency when matched with appropriate cooling system components

Technology

  • Two-stage gas valve
  • Variable-speed, constant torque ECM blower motor
  • Pilot-free, hot surface PowerHeatTM ignition
  • Two-speed inducer motor
  • Aluminized steel clamshell-style primary heat exchanger
  • Stainless steel fin-and-tube design secondary heat exchanger
  • Sound reduction: fully insulated cabinet and QuieTech noise reduction
  • Recommended controls: Performance Edge® relative humidity or ComfortZoneTM II thermostats

Capacities

  • 40,000-120,000 Btu/h

Installation

  • Flexible installation: upflow, downflow or horizontal
  • Versatile venting for tight-fit applications

Requirements

  • 115 V
  • .5″ gas connection
  • Convertible to Liquid Propane (LP)

Aesthetics

  • 20-gauge, galvanized steel with appliance finish
  • Baked on urethane base coat and polyester top coat paint in taupe metallic
  • Dimensions in upflow position: 35″H x width varies by size: 14.2-24.5″ x 30″D
